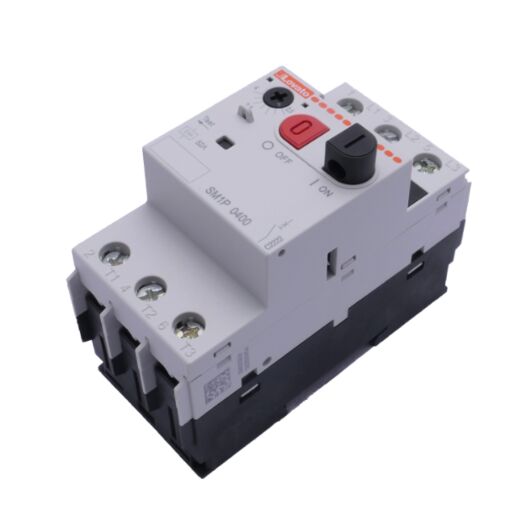

SM1P0400 Lovato 2,5A-4A Motorschutzschalter
SM1P0400 Motorschutzschalter mit Drucktasten 2,5A-4A
71,70 €
Inkl. 19% MwSt., zzgl. Versand
Lieferung in 1 bis 3 Tagen innerhalb Deutschlands.
Auf Lager
1 Produkte sind für Sie verfügbar
ARTNR
10-02989
Product designation Motor protection
circuit breaker
Product type designation SM1P Electrical features
Number of poles Nr. 3
Magnetic protection yes
Thermal protection yes
Phase failure detection yes
Rated insulation voltage Ui IEC/EN V 690
Rated impulse withstand voltage Uimp kV 6
Rated frequency Hz 50/60
Thermal trip adjustment range 2.5…4
Rated current (In) A 4
Magnetic tripping 13 x In
Power dissipation per pole
min W 0.90 max W 2.29
Operational short-circuit current breaking capacity (Ics) at AC
230V kA 100
400V kA 100
440V kA 100
500V kA 100
690V kA 3
Maximum short-circuit current breaking capacity (Icu) at AC
230V kA 10
400V kA 100
40V kA 100
500V kA 100
690V kA 3
Tripping class 10A
IEC Utilization category
Operations
Mechanical life cycles 100000
Electrical life cycles 100000
Mechanical features
Tightening torque for terminals
min Nm 2.5
max Nm 3
min Ibin 22
max Ibin 26.5
Max number of wires simultaneously connectable Nr. 2
| Artikelname | SM1P0400 Lovato 2,5A-4A Motorschutzschalter |
|---|---|
| ARTNR | 10-02989 |
| Gewicht (KG) | 0.330000 |
| Herstellungsland | Italien |
| Höhe | 87 mm |
| Hersteller Nummer | SM1P0400 |
| Hersteller | Lovato |
| Betätigung | Drucktaster |
| Statistische Warennummer | 8536 20 10 |
| Traub Bestellnummer | SM1P0400 |
